Here's a brief look at the Celestron 2800mm F/10. Scroll
down for the review.
Lens
|
Celestron 2800mm F/10 Nexstar GPS
|
Box contents
|
Front and rear caps, and a users manual.
|
Cost
|
Around $2599 starting price with tripod.
|
Build quality
|
Good
|
Additional information
|
Requires T-ring and focus adapter for your camera, about $50 for both.
|
Specifications below
|
|
Optical configuration
|
One zero power collector plate, one sperical primary mirror, and a secondary mirror.
|
Angle of view
|
0.72°x 0.50° (35mm camera)
|
Aperture
|
F/10--big hole!!
|
Full frame and APS-C
|
Adaptable to any modern camera.
|
Depth of field and focus scales?
|
Nothing
|
Minimum focus, image plane to subject
|
About 66 feet, or 20 meters.
|
Minimum focus, end of lens barrel to subject
|
About 64 feet, or 19.5 meters.
|
Hard stop at infinity focus?
|
No
|
Length changes when focusing?
|
No
|
Focus ring turns in AF?
|
N/A
|
Filter size
|
The lens front cover is 317mm in diameter.
|
Filter ring rotates?
|
N/A
|
Distance encoder?
|
N/A
|
Max magnification
|
About 660x useful power, realistically, under average viewing conditions, less than 220x.
|
Min. F/stop
|
F/10, fixed
|
Sony teleconverter compatible?
|
Yes, but it's crazy to use one.
|
Dimensions W x L (my measurements)
|
Optical tube is 12.25" x 22" (311mm x 559mm) overall length including camera adapter and
focus knob about 25" or 635mm.
|
Maximum extended length (my measurements)
|
About 25" or 635mm.
|
Weight bare (my scale)
|
Optical tube is listed as 65 lbs (29.5 kg), and the tripod is 26 lbs (11.8 kg)
|
Requisite product shots.

|
With A900. |

|
Backside |

|
Camera with T-ring and focus adapter |

|
Right side |

|

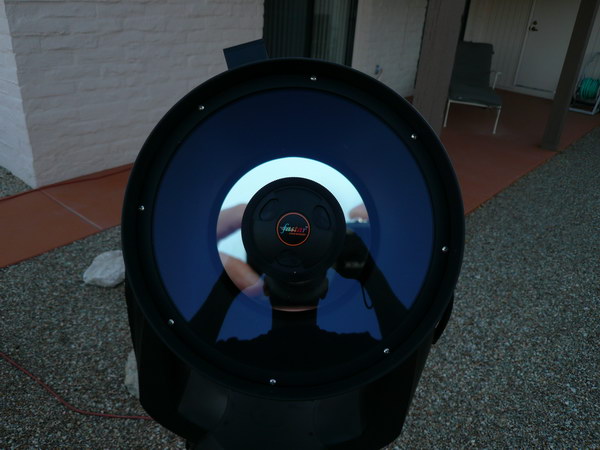

Corrector plate (blue part), mirror in back, around center. |

|
Specification sheet |
The A900 was used for this review.
This is a quick review of the Celestron 2800mm telescope when configured for terrestrial
viewing with a compatible camera, in our case, a Sony A900. This will not be a review of the telescope as it was designed
for, like nighttime star gazing. This is not just a larger version of the Sony 500mm reflex lens,
which incorporates auto-focus and a different optical design, though they both use mirrors to channel light through the aperture.
My copy has a carbon fiber optical tube, a fork mount and a Telrad reflex finder. If you're
thinking of getting a lens to really pull the scene up close, this telescope may, or may not be what you're looking for, depending
on application. For birds, sports or action type photography, the much smaller and faster 500mm F/8 reflex lens would
be much better. If you want to take pictures of planets, the moon, or stars, and occasionally want to check out the
distant harbor or neighbors back 40, this telescope would be very useful. Don't buy this huge telescope for daytime
use only, as it's extremely hard to get a good shot because of heat shimmer, hazy atmospheric conditions, and movement caused
by wind, mirror actuation and user. For all shots below I used at least ISO 400, mirror lock-up, and a corded remote.
You'll need to use manual mode on the camera to allow the shutter to fire because of "no lens attached" reading,
and focus looking through the viewfinder while focusing with the telescope knob. The EXIF data will show the aperture
as F/1 and focal length as 0. Focusing takes 37.5 turns of the knob from close-in to infinity. Coma.
None. Color looks blue when compared to Sony and Minolta lenses. Bokeh
is typical reflex/mirror design donut shapes. Color fringing. None
observed.
Light fall-off or corner darkening below is moderate, though you can't do anything about it.

|
Full scene, Sony 500mm F/8 reflex lens |

|
Full scene, 2800mm F/10 Celestron |
Above are the two full scene (uncropped) shots from the lenses. The object for our comparison is
the flower pot in the center, by the brick steps, (hard to see in the first pic). The distance is about half a mile,
or .47 miles, (756 meters) as measured by Google earth, and my car odometer. The color differences are obvious, the
telescope renders images somewhat blue, but I also took the 500mm reflex shots last, when the sun was lower and the colors
warmer, so the differences in color aren't quite as dramatic as they seem here.

|
Sony 500mm F/8 reflex center crop |

|
2800mm F/10 center crop |

|
Sony 500mm F/8 reflex center crop upsized to same as 2800mm shot. |
The 2800mm is really pulling in the scene here, with a huge jump in resolution over the 500mm as expected,
especially by looking at the last shot which I upsized to show as a direct comparison. The 500mm shot was 1/400 sec
at ISO 200, the 2800mm was 1/1000 at ISO 800, which I really needed as any less shutter speed resulted in blur, even using
mirror lock up and a corded remote. To get a better idea about the detail size, the black lamp post is
3" (75mm) wide. So I'm figuring the flower pot is about 18" (457mm) wide. It looks like you may
be able to make out 1" (25mm) newsprint from almost half a mile (756 meters) away!!

|
Moon shot with 2800mm. 1/160 sec, ISO 400 |
This moon shot shows how much area is covered using a full frame camera. You can't really
get the entire moon in, but then again you don't shoot the moon when it's full, as there are no shadows to convey
depth and detail. This shot was a little blurry (do to high winds and an angle close to the horizon; I have better shots
of course, but with a different camera system) so I'm not going to show any crops this time, I'll try again when I
have more favorable conditions. Incidentally, this moon picture was taken in daylight, before the sun went down.
I used levels adjustments to make it look better.
My final thoughts. This
review was just for fun, I wouldn't recommend the telescope as a daylight super telephoto camera lens, it's just to
much trouble. You need a high shutter speed for sharp shots, which requires a high ISO, and when you factor in heat
shimmer, wind, haze in the atmosphere, and user error, it's very hard to get good shots. I think an 11", 2800mm
telescope is way too much, but you may consider a smaller one, around 1000mm focal length, which, in my opinion, is about
all that's practical in normal applications.
|
